N95 Breathing Valve Machine Personal Protective Respirator Mask Making Machine

The mask machine is a multi-layer non-woven fabric made by hot pressing, folding forming, ultrasonic welding, scrap removal, ear strap bridge welding and other processes to produce a variety of masks with certain filtering performance. The mask equipment is not a single machine, it requires The cooperation of multiple machines completes various processes.

Brief introduction of N95 mask machine:

This machine is mainly used for folding mask machine:

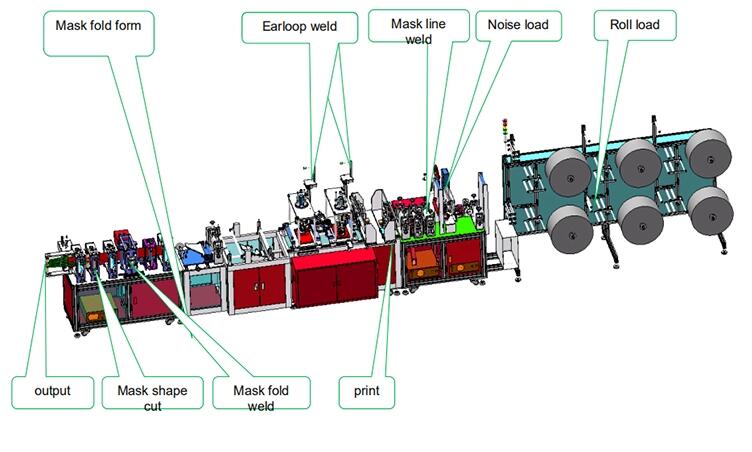

Coil feeding----nose bridge tendon feeding----mask texture welding----printing (pad printing)----ear band feeding machine welding----mask folding molding----mask folding Welding----Mask shape cutting----Finished product blanking.

Technical Parameters
Equipment size		9800 * 1000 * 2050mm
Appearance color		off-white paint or stainless steel
Equipment weight		≤1500kg, ground bearing capacity:> 3000KG / M
Working power		220V 50hz
Rated power		18kw
Compressed air		0.5-0.7MPA, using flow rate of about 300L / MIN
Operating environment		temperature: 10-35 ℃, humidity 5-35% HR
Equipment production capacity		25-50pcs / min
Equipment qualification rate		96-99%
Equipment failure rate		2%, refers to the failure caused by the equipment itself
Finished mask size		folded size160*105
Mask material		Melt spray cloth, hot air cloth
Mask layers		3-6 layers
Ear strap fixation		welding
Control system		PLC
Remarks:		Add breaking valve part, printing part.

Performance characteristics:

1. The machine uses first-line brand ultrasonic welding machine, which has good welding effect, good stability and low failure rate;

2. The surface layer, filter cloth and bottom layer of 3-6 rolls of fabric are automatically aligned and fed, and the contour is symmetrical and ultrasonic continuous blanking. After passing through the bridge of the nose, it is conveyed to the earband for welding, and then folded and trimmed to separate the finished product and waste.

3. The left and right sides of the earband are equipped with an automatic cutting module, which realizes automatic welding by ultrasonic waves.
