Double Belt PU Sandwich Panel Line Sandwich Making Equipment Continuous Type

Product description

The PU sandwich panel made from the sandwich panel roll forming machine is produced with foaming at working site. There is a special device injecting the foaming material between the upper and lower metal sheet. And then the material will be sent to double crawler belt. The chemosynthesis and solidification are both finished inside the double crawler belt. Cutting is in accordance with the length set previously. The sandwich panel roll forming machine has non-stop cutting device and the cutter will be moved along with the panel. The working process of sandwich panel roll forming machine consists of uncoiling, film covering, cutting, roll forming, pre-heating, foaming, solidification, panel cutting, stacking, transferring and packing.

Working flow

Down side rigid board feed----Rolling rack----glue drop onto rigid board----glue sweep----EPS sheet load----- Rolling rack and lamination-----glue drop onto EPS Sheet----glue sweep----up rigid board feed ---Rolling lamination----finished product

Technical Parameters:

Length of panel: 6m,12m,15m

Width of panel: 500-1250mm

Thickness of panel: 40mm-250mm

Speed of Production line: 8m/min ( frequency conversion to adjust speed )

Core Density (Kg/m2):40-42

Thermal Conductivity (W/m°K):0.018 – 0.020

Tensile Strength (KP a) :300–500

Bending Strength (KP a): 550–560

Shear Strength (KP a):120–300

Modulus of Elasticity (Mp a):3.0 – 8.5

Water Absorption :<2(Volume change %)

Water Vapor Transmission :1.8-3.8(Perm-in)

Stable Operating Temperature:-40to+50(°c)

Machine components

Applications

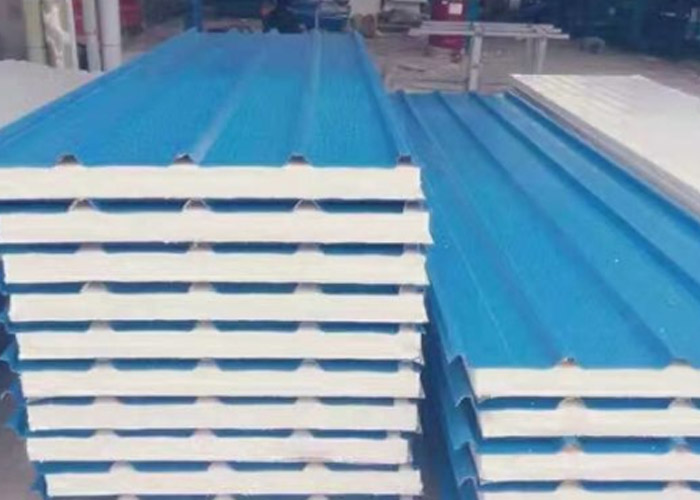

Roof Wall PU Sandwich Panel, Insulated Sandwich Panel, Prefabricated House, Prefab House, Mobile House, Cool Room...
