    Flattening Cut To Length Line Machine / Auto Wire Cut To Length Machine

    Ask Lasest Price
    Brand Name : YBT
    Model Number : YB952606
    Certification : CE ISO SGS
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10set
    Delivery Time : 60-90 days
    • Product Details
    • Company Profile

    Flattening Cut To Length Line Machine / Auto Wire Cut To Length Machine

    Flattening cut to length line machine wire cut to length machine manufacturers

    Product Introduction

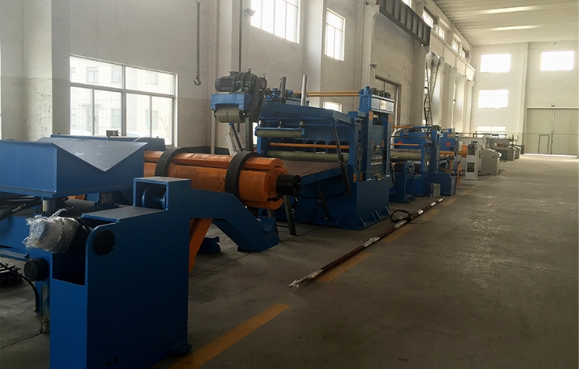

    This Cut to Length Line is used for coil with different specifications, throughuncoiling, leveling and cutting to length to flattened plate as needed lengthand width. Rawmaterial is CR steel ,aluminum ,stainless steel ,pickle steel etc. This line is composed of coil car, double support un-coiler, pre-leveler,finish-leveler, length gauge, cut to length machine, stacker, servo drivensystem, etc. as well as pendulum middle bridge, pressing and guiding device andsteering device.

    Application:


    Numerical controlled cut-to-length line is the latest special equipment for transformer lamination manufacturing.



    Standard Flow chart of cut to length line:

    Coil lifter --- hydraulic decoiler --- snubber roller --- pinch roll & pre-leveler --- loop bridge --- side guide roller --- main leveling machine --- encode & measuring device (with tail plate pinching) --- shear --- conveyor --- hydraulic lift platform --- stacker with blower device --- unload cart


    Features:
    1, The hiqh accuracy of sheet feeding and cutting are guaranteed by precise optical grating encoder, servo diver system and PLC. The maximum sheet feeding speed is 240m/min. Start or stop time is less than 100ms.

    2, Adoption of graphic operation terminal with user-friendly Chinese/English menu and colored processing pattern display. Which enables operators to touch control buttons to select required lamination shapes and addjust parameters easily.

    3, Computer controlled lamination length compensation, rapid adjustment of cutting length.

    4, It features longitudinal and cross step cutting function and can cut step laminations automatically(optional).

    5, Cutting diverting and stacking can be preset and fulfilled automatically.

    6, Two modes of offset adjustment. Edge positioning and center positioning.

    7, Automatic step stacking of steel sheets from largest to smallest sizes. The longitudinal accuracy is ± 2mm and cross accuracy is ± 1mm (optional).


    Technical parameter of full line

    1, Plate material:≤360N/mm2

    2, Straighten thickness:0.5~1. 0mm

    3, Straighten width:800~1250mm

    4, Feeding width:1350mm

    5, Coil inner diameter:508~610mm

    6, Coil outer diameter:1000~1800mm

    8, Coil weight:≤10000KGS

    9, Size forming precision:≤±1.0mm/2M

    10, Diagonal precision:≤±1.5mm/2M

    11, Straighten precision:≤1.5mm/m2(Standard)

    12, Speed:Vmax≤25m/min(Adjustable)

    (Cutting pieces in fact:5~6 pieces/min on the length of 3000mm)

    13, Total power:~55KW


    Machine component

    1, hydraulic charging cart

    2, hydraulic uncoil

    3, hydraulic supporting and clamping device

    4, limited working table

    5, straightening main machine

    6, length measure working table

    7, shearing machine

    8, feeding working table

    9, discharging frame

    10, hydraulic lift cart

    11, hydraulic pneumatic system

    12, electric control system


    We Promise :

    1, Take the EUROPEAN Quality Standard;

    2, Choose the Best Material and Components.

    3, Over 20-Year-Experienced Experts and Top International Sales to Care Your Needs.

    4, Offer The Highest Quality but The Best Price in Prevailing Market.

    5, Customize for You.
