Auto Gantry Welding Machine H T I Type Beam Export To Southeast Asia

The auto-welding machine for H-type steel accepts the AC frequency conveyor to control speed with the merits of stable and reliable running and quick returning. It use the auto-arc tracing & centering device to ensure the welding gun being auto and correct centering to the target workpiece. Meanwhile, it is equipped by the auto welding flux feed and recovery system, easy operating and high efficiency. And the column-beam welding machine can increase the height of web according to the need of the users.

Product Description:

1 . The automatic centering of flange and web adopts hydraulic motor and gear, with high centering precision and good retentivity. All of the operation are centralized on the electric control button panel, with easy and convenient operation and precise positioning.
2 . The main transmission part adopts cycloid pinwheel and Taiwan TAIAN brand inverter, the assembly speed can be adjusted between 0.5—6 M/min.
3 . The main components of this machine are welded structure parts with large strength and light weight. and the key components have been stress relieved, which don’t deform easily.
4 . Can be used as eccentric H-beam

Technical parameters:

Process of Rolling form machine

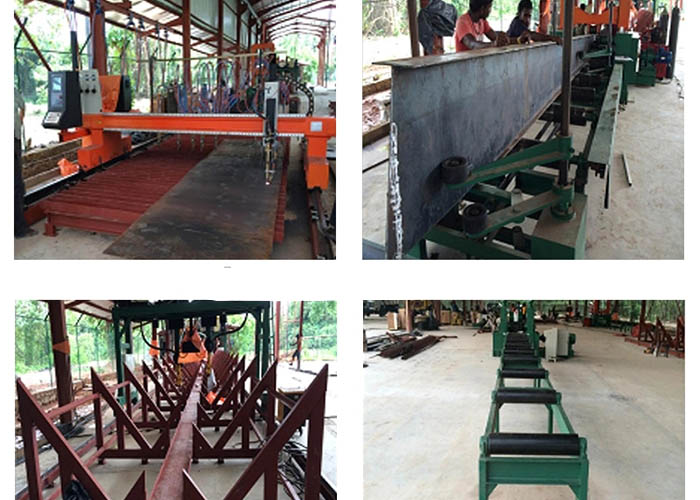

Plate cutting ---Cutting lay-off---Hanger plate---T type assemblying---90°Turn---Hoisting-H beam assembly---Hoisting--- Welding of angle seam I--- 90° turn---Welding of angle seam II---180° Turn---Welding of angle seam III---90° turn---Welding of angle seam IV---Convery---Rectification of Flange slab I---90° turn---Hoisting---Rectification of Flange slab II---Convery---Welding Of rib according to practical---Convery---Surface Impeller blasting---Remove blast--- Convey---Oilpaint---Packing for leaving

After-sale service

1 . The warranty of roof batten roll forming machineis one year after the client receives the machine.

Within the one year, we will courier the replacement parts to the client free of charge.

2 . We offer technical support for the entire life of our machines.We can send our technicians to install and train the workers in the clients' factories with extra cost.

3 . Terms of trade of ceiling batten machine : a. Minimum order quantity (MOQ): 1 piece b.Delivery time: about 45 workdays c.Port of loading: port of Shanghai

Application

Wuxi YBT machinery Equipment co.,ltd established in 1998, specialize in cold roll forming machine and auto-producing line.To put customers'benefit on the first, we know our success comes from customers'success and support. We run this mind through the whole process from the design and develpment to after-sale service in order to help our customer increase efficiency and reduce cost to strengthen competitive forces. Our designer and sales will listen to your reuirement to help you receive an ideal equipment.Our company has perfect internte for after-sale service which can support the after-sales so that you can get the satisfied equipment, ensure you receive our considerate service by solving all the problems which appeared during using the machine.
We will do the best machine to my all customers!

Our roll forming machine series:

1. Steel Silo Roll Forming Machine

2. Shutter Door Roll Forming Machine

3. C Z Purlin Roll Forming Machine

4. PU Sandwich Panel Line

5. Rock Wool Production Line

6. Highway Guardrail Roll Forming Machine

7. Floor Deck Roll Forming Machine

8. Cable Tray Roll Forming Machine

9. Steel Roll Forming Machine

10. Metal Slitting Line

11. Cut To Length Line Machine

12. Downpipe Roll Forming Machine

13. H Beam Welding Line

We will try do our best for make best quality machine!
