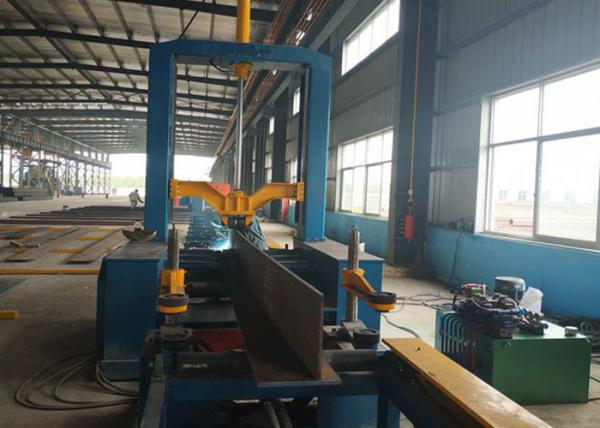

Horizontal Assembly H - Beam Flange Straightening Machine Welding Line

The auto-welding machine for H-type steel accepts the AC frequency conveyor to control speed with the merits of stable and reliable running and quick returning. YBT Machinery produces fully automatic steel profile welding and production machine--New H Beam Welding Line Fully Automatic. Professional and effecient equipments to help you in H beam, pipe-flange, pipe-elbow and etc. Welding and fabrication.

Technical Parameters

1 , Workpiece range:
Flange width: 200-800mm Thickness:3-35mm.
Web height: 200-1500mm Thickness:3-25mm.
2 , Assembling & Welding speed: 0.35-3m/min
3 Main drive roller diameter: 250mm.
4 , Main drive roller speed: 3500-6000mm/min.
5 , Main drive roller speed adjustment type:AC frequency conversion stepless speed regulation.
6 , Correct wheel diameter: 180mm
7 , Correct wheel cylinder lifting intinerary: 200mm
8 , Straightening roller diameter: 380mm
9 , Main drive motor power: 7.5KW
10 , Upper pressure roller diameter: 160mm
11 , Upper pressure lifting cylinder stroke: 1350mm
12 , Body size(L*W*H): 2515*2430*3530mm
13 , Overall power: 13.4KW
14 , Conveyor roller power: 1.5 x 2 = 3KW
15 , Flux recycling station power: 4 x 2 = 8KW
16 , Hydraulic station power: 5.5KW

Plate cutting ---Cutting lay-off---Hanger plate---T type assemblying---90°Turn---Hoisting-H beam assembly---Hoisting--- Welding of angle seam I--- 90° turn---Welding of angle seam II---180° Turn---Welding of angle seam III---90° turn---Welding of angle seam IV---Convery---Rectification of Flange slab I---90° turn---Hoisting---Rectification of Flange slab II---Convery---Welding Of rib according to practical---Convery---Surface Impeller blasting---Remove blast--- Convey---Oilpaint---Packing for leaving

Applications:

• Integrating precision assembly, stable SAW welding and flange deformation straightening on one combination machine
• Can save time during work piece transport and space of workplace, also can improve annual output of unit-area
• Various specifications are available

After-sale service

• The warranty of roof batten roll forming machineis one year after the client receives the machine.Within the one year, we will courier the replacement parts to the client free of charge.
• We offer technical support for the entire life of our machines.We can send our technicians to install and train the workers in the clients' factories with extra cost.
• Terms of trade of ceiling batten machine : a. Minimum order quantity (MOQ): 1 piece b.Delivery time: about 45-60 days c.Port of loading: port of Shanghai

Wuxi YBT machinery Equipment co.,ltd established in 1998, specialize in cold roll forming machine and auto-producing line.To put customers'benefit on the first, we know our success comes from customers'success and support. We run this mind through the whole process from the design and develpment to after-sale service in order to help our customer increase efficiency and reduce cost to strengthen competitive forces. Our designer and sales will listen to your reuirement to help you receive an ideal equipment.Our company has perfect internte for after-sale service which can support the after-sales so that you can get the satisfied equipment, ensure you receive our considerate service by solving all the problems which appeared during using the machine.
We will do the best machine to my all customers!
