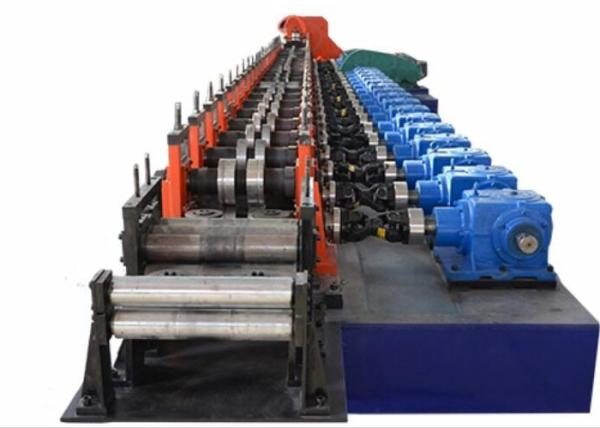

    Solar Photovoltaic Support Rack Roll Forming Machinery 76mm Shafts Diameter

    Ask Lasest Price
    Brand Name : YBT
    Model Number : YT376506
    Certification : CE ISO SGS
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10set
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    Solar Photovoltaic Support Rack Roll Forming Machinery 76mm Shafts Diameter

    Strut Cold Roll Forming Machine , Steel Roll FormingMachine With CE Standard


    Description:

    The application of pv support system in solar panel support is much more than simple production and installation.

    Solar panels can also move flexibly according to the sun's rays and seasons.

    Like just when installation, the slope of each solar panels can be via mobile fasteners, cant adjust to adapt to the different angles of light, again through the fastening make solar panels accurate fixed in the location specified.

    No.ItemDescription
    1Dimension30m x 3m x 2.5m (L*W*H)
    2Raw materialMild steel, Galvanized steel coil or strip
    3Coil width300 mm max
    4Thickness1.5-2.5 mm
    5Forming stations20 stations, gearbox transmission
    6Total power45KW AC motor
    7Track cutting motorTrack cutting motor
    8Forming speed20m/min max
    9RollerGCr12MoV Steel, quenched, coated with hard chrome
    10Shaft45# steel with tempering heat-treatment
    11Shaft diameterDia 80mm
    12Roller station20 stations
    13production speed8-10m/min
    14Hydraulic power5.5 KW
    15Voltage380V/50Hz/3Ph
    16Control systemPLC control system

    Working process:

    Uncoiling---Leveling---Storage---Feeding---Punching---Cutting---Roll forming---Hydraulic cutting---Output table


    Detailed information:


    Decoiler

    Inner Diameter: Φ500 – Φ550 mm
    Out Diameter: 1000 mm
    Max. Loading Capacity: 5000 kg
    Type: hydraulic
    Power:7.5kw
    Control system: PLC

    roll forming machine

    Rolled Material: Cold Rolled Steel Sheet
    Material Thickness: 1-2mm
    Rollers: 22Groups
    Material for Rollers: GCr15 steel after treatment

    Hardness for Heat Treatment: HRC55 – 60
    Frame panel thickness: 20mm
    Bottom frame: 40# H-section steel
    Motor Power:11 kw x2
    Driven type: double sides double row 1.5"Chain


    Punching device

    ItemParameter detail
    Frame processingthe whole levelling surface is made by drilling machine
    Mould materialCr12mov
    Mould processingwire eletrode-cutting for the mould shape, it will save pressure
    Hole sizeAccording to your request
    Hole numberAccording to your request
    Pressure20Mpa


    Cutting device

    TypePre-cutting
    Blade materialCr12mov quenching and grinding
    Frame processingthe whole bottom frame is grinding for high-precision
    Blade processingwire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
    Working

    Hydraulic type



    Solar mounting bracket roll former for production different size solar pv support
    Common specifications for solar brackets (unspecified specifications can be customized)
    Internal crimping C-shaped steel U-shaped steel reinforced tooth: hot-dip galvanized, hot dip galvanized
    41*30*10*8*(1.5-2.5) 50*75*15*9*(2.0-3.0)mm
    41*21*10*7 *(1.5-2.5) 41*41*10*8*(1.5-2.5)mm
    41*52*10*7*(1.5-2.5) 41*62*10*8*(1.5-3.0)mm
    41*72*10*8*(1.5-3.0) 41*82*10*8*(1.5-3.0)mm
    60*60*15*10*(1.5-3.0) 60*80*15*10* (1.5-3.0)mm
    60*70*10*8* (1.5-3.5) 100*50*15*10*(1.5-3.0)mm
    C-shaped steel Z-shaped steel, U-shaped steel
    60*40*(1.5-3.5) 57*30*10* (1.5-3)mm
    68*50*(1.5-3.5) 40*60*15*(1.0-3.0)mm
    80*40*15*(1.5-3.0 60*50*15* (1.5-3.5)mm
    100*50*20*(1.0-4.5) 100*40*15*(1.5-3.5)mm
