10 - 15 m / min Stainless Steel Cable Tray Roll Forming Machine

Description:

Cable tray roll forming machine uses cantilever type at the two sides, the punch press do the round ribs in bottom or different holes’stamping and cutting. The material is guided into main roll forming machine by guider. By electrical control, automatically improve and adjust different width and height. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction.

Main machine parameters:

1 . Matching material: Galvanized steel

2 . Material thickness range: 0.8-2mm

3 . Forming speed: 10-15m/min(include the punching and cutting time)

5 . Main power: 22kw

6 . Roller station: 20stations

7 . Shaft material and diameter: 76 mm, material is 40CR

8 . Material of the body: 400H steel. Wall Panel; 20mm Q195 steel(all with electrostatic spraying)

9 . Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃

10 . Controlling system: PLC

11 . Way Of drive: By chain

12 . Voltage: 380V/ 3phase/ 50 Hz

13 . Size of the machine: L*W*H 23m*1.5m*1.2m

14 . Material of forming rollers: Gcr 15/Cr12, coated with chromed treatment (you can choose the material as your request)

15 .Tolerance: +-1.5mm

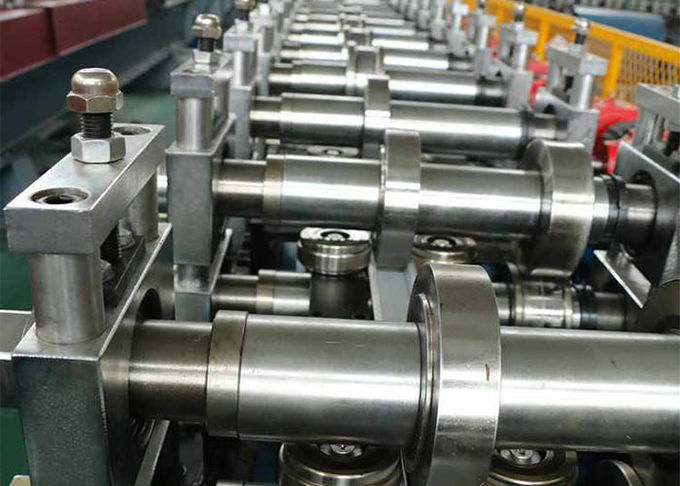

Machine components:

Working flow:
Uncoiler—Feeding—Leveling—Punching—Roll forming—Hydraulic cutting—Output table

Detailed information:
