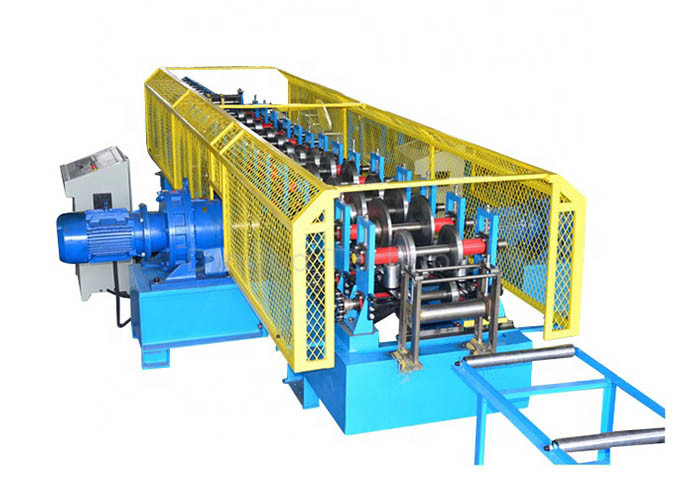

20 forming stations Cable Tray Roll Forming Machine 14m / min
Description:
Our cable tray forming machine has many advantages of stablity,
efficiency, material saving, low noise. And our machines work
within high speed which improves its productivity greatly. Besides,
Its products have high quality and fashionable styles. It is widely
used in stores, warehouses, buildings, welcomed by customers
throughout the world. The machines can be designed to produce
different shapes and sizes according to customer's requirements.
Main technical parameters:
1 . Raw material request:G350-G450Mpa cold rolled or hot rolled
steel,galvanized steel
2 . Material thickness:0.5mm-1.0mm
3 . Whole line working speed:14m/min
4 . We adopt cantilever type machine structure
5 . 20 forming stations
6 . Motor power:2x11kw Siemens brand
7 . Material max. thickness:0.8-1.5mm
8 . The diameter of the shaft:75mm
9 . Rollers material: GCr15,quenching treatment:HRC58-62°
10 .Material of shaft:40Cr heat treatment
11 .Driving system:chain drive 1.2”HRB brand made in China
12 .With fully automatic adjustment from one width to another width
it just needs few seconds to finish changing:
Width from 50mm to 200mm: we use 1x 2.2KW motor.
Whole line components:
| 3 Ton hydraulic decoiler with control box and hydraulic station | 1 set |
| Leveling machine | 1 set |
| Servo-feeder and control cabinet | 1 set |
| 200T punching press | 1 set |
| Punching mould for cable tray 50-200mm width | 1 set |
| Punching mould for cable tray 50-100mm height | 5 sets |
| PLC control box(main forming machine) | 1 set |
| 50-100x50-200mm Full automatic roll forming machine | 1 set |
| Flying shear with servo-motor control | 1 set |
| Cutting blade with end-expand | 1 set |
| Hydraulic station for cutting | 1 set |
| Outables | 2 sets |
Working process:
Feeding → Hydraulic punching → Guiding → Roll forming → Hydraulic
cutting → Carrier out of product
Detailed information:
. The diameter of the shaft:75mm
. Rollers material: GCr15,quenching treatment:HRC58-62°
. 20 forming stations
. Driving system:chain drive 1.2”HRB brand made in China
After-sale service:
1 . Installation and training of roof forming machine:
a . If buyers visit our factory and check the machine, we will
teach you how to install and use the machine, and also train your
workers/technician face to face.
b . Without visiting, we will send you user manual and video to
teach you to install and operate.
c . If buyer needs our technician to go to your local factory,
please arrange board and lodging and other necessary things.
2 . After Service of roof forming machine:
a . One year guarantee for whole roof forming machine.
b . 24 hours technical support by email or calling
c . If there is any problem found of the roof forming machine, we
will repair it for free in one year.
