C80-300 C Purlin Roll Forming Machine , Quick Change Size Roll
Forming Machine
The CZ Purlin Roll Forming Machine is used to produce both C and Z
purline on one machine.Adjust from one shape to the other, one
operator only needs 1 minutes, and the size adjustment can be fully
automatic
YBT can also customize the machine according to your requirement.
Techincal Parameter
| No | Item | Parameter | Remark |
| 1 | Suitable
Material | Type | Galvanized Steel | |
| Thickness(mm) | 1.5-3.0 | As customized |
| Yield Strength(Mpa) | 235-450 | |
| 2 | Forming Speed(m/min) | 20 | not including the punching and cutting |
| 3 | Material of Punching Die | CR12 | with quench treatment |
| 4 | Cutting Mode | hydraulic cutting | As customized |
| 5 | Power source | Type | 380V/3PH/50HZ | As customized |

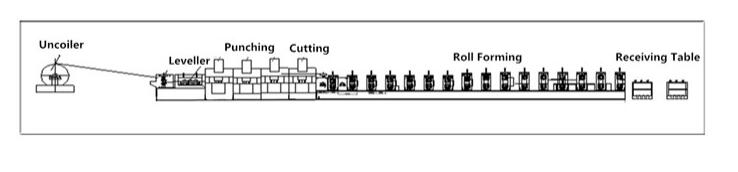

Equipment components:
Hydraulic uncoiler, Roll forming machine, computer control system,
hydraulic control system, cutting,stack
Our products are widely used in various industrial factory,
civilian building, warehouse and easy steel building manufacturing,
and have features such as nice appearance and durable.
Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=35-80mm ; C=10-25mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=35-80mm ; C=10-25mm ; T=1.5-3mm
CZ Interchange:
equipped with groups motor driven, fully automatic C Z interchange
unit, interchange between C and Z controlled by PLC and set through
touch panel
Differents shapes of C and Z ,Welcome to send us your new design
Cutting tool and Punch holes
FAQ
Q : Do you provide installation and commissioning?
A : Sure, we have experienced and professional installation team
which available for wordwide areas.
Q : What's the delivery time of your CZ purlin machine?
A : 65-90 days
Q : Did you test you machine before delivery?
A : Yes, all our machines will test 24 hours before leave factory.
Q : What's the payment terms of your machine?
A : Normally its 30% T/T in advance and 70% by T/T
Q : How can inspect the machine if I can't go to China?
A : We will send you machine testing video and also product sample
if required.
