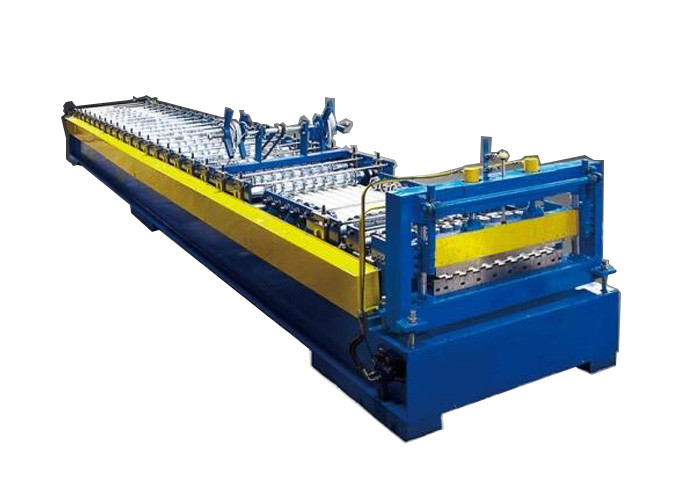

High Quality Australian Style Roller Shutter Door Roll Forming Machine:

Our company can customize different plate shutter door cold bending machine, it has excellent quality, the price is appropriate. Our machines are sold abroad due to its good quality, high efficiency, machine stability . Products are widely used in shops, business companies, family lifes. The products it made win a good reputation all over the world since our company was established.

Technical Parameters:

Processing flow of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Exit table

No.	Mchine composition	Quantity
1 .	Hydraulic decoiler 3T	1 set
2 .	Cold rolling mills	1 set
3 .	Hydraulic cutting device	1 set
4 .	PLC computer	1 set
5 .	Electric cabinet	1 set
6 .	Exit table	1 set

We can make and design machine for composition brand, profile drawing, manual or automatic according to customer's requirements.

Hydraulic Cutting device
hydraulic motor: 2.2KW, Hydraulic pressure range: 0-12Mpa
Cutting tool material: Cr12Mov, Heat treatment

Cold Rolling Mills:
Rollers manufactured from bearing steel Cr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust)

Motor Driving,Gear chain transmission, 27 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling)

Main Motor=11KW , Frequency speed control

Forming speed approx.12-18m/min

Q&A:

1 . Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2 . Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3 . How to visit your company?
Fly to Shanghai airport: By high speed train From Shanghai(1 hour) and get off at East Wuxi Station , then we can pick up you.

4 . What can you do if the machine broken?
Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

5 . Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.

Wuxi YBT machinery Equipment co.,ltd established in 1998, specialize in cold roll forming machine and auto-producing line.To put customers'benefit on the first, we know our success comes from customers'success and support. We run this mind through the whole process from the design and develpment to after-sale service in order to help our customer increase efficiency and reduce cost to strengthen competitive forces. Our designer and sales will listen to your reuirement to help you receive an ideal equipment.Our company has perfect internte for after-sale service which can support the after-sales so that you can get the satisfied equipment, ensure you receive our considerate service by solving all the problems which appeared during using the machine.
We will do the best machine to my all customers!
