Heavy Gauge Foil Metal Slitting Line PLC Automatic Control Color Customized

Ask Lasest Price
Brand Name :	YBT
Model Number :	YB952608
Certification :	CE ISO SGS
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	2set
Delivery Time :	60-90 days

Add to Cart

Product Details
Company Profile

Heavy Gauge Foil Metal Slitting Line PLC Automatic Control Color Customized

Heavy Gauge Slitting Line Machine Foil Slitting Machine PLC Automatic Control

Metal Slitting Line

Heavy Gauge Slitting Lines are used for different sizes coils with different thickness to be slit into special strips as requirements These products are for roll mill,HF tube mill, cold forming machines ,punching &press machines etc. Raw material is CR material ,HR material , silicon steel, S.S steel,Color steel, AL ,PPGI

High availability
Low operating costs
High automation level to reduce non-productive times
Flexibility from customer-specific arrangement and design
Separate coil preparation system
Tool change turnstile to minimize the program change times
Edge scrap shear with hydraulically operated knife heads in tapered polygonal design for rapid knife head change
High quality of the final product

Application

It is applied to do the high speed slitting and rewinding for the CRS, Galvanized steel and stainless steel, HRS and so on.

Use in great production factory with high output

Features:

1. Adopt good PLC control system, high degree of automation.

2. Adopt reliable hydraulic system and hydraulic elements.

3. Electronics adopts famous wrld brands,quite reliable.

4. Adopt good mechanical design with high solidity and strength.

Metal Slitting Line Specification:

Model No.	RS 3.0-12.0	RS 4.0-16.0	RS 6.0-20.0
Coil Material	CR Coils , HR Coils, S.S Steel Coils, GI Coils, AL Coils, Copper Coils Picking Oil Coils
Coil Thickness	3.0～12.0mm	4.0～16.0mm	6.0～20.0mm
Line Speed	0～60m/min	0～50m/min	0-50m/min
Coil Weight	≤30T(35T)	≤30T(35T)	≤30T(35T)
Coil I.D	φ508,φ610,φ760mm	φ508,φ610,φ760mm	φ508,φ610,φ760mm
Coil O.D	≤φ2200mm	≤φ2500mm	≤φ2500mm
Strip Width	≥100mm	≥100mm	≥100mm
Number of Strip	5～20	≤5	≤5
Slitting Accuracy	±1.0mm	±1.0mm	±1.0mm
Blade shaft	Ф320	Ф340mm	Ф360mm
Electrical Control System	PLC Automatic control	PLC Automatic control	PLC Automatic control

COIL/ROLL DETAILS	Material	HR, CR, SS, GI, PPGI,
	Tensile Strength	δb≤550Mpa,δS≤260Mpa
	Coil/Roll thickness	6-20mm
	Steel Coil/Roll width	600-2500(Max)
	Coil/Roll I.D	Φ500-760 mm
	Coil/Roll O.D	Φ2500mm(Max)
	Steel Coil/Roll Weight	35T(Max)
Slitter parameters	knife pivot diameter	Ф360 mm
	Knife pivot material	40Cr
	Blades specification	Φ360mmXφ360mmX20mm
	Blade material	6CrW2Si
	Max slit quantity	4 pcs (16mm) 8 pcs(8mm)(Customized)
	Width precision	≤±0.05mm/2M
Other parameters	Power	380V/50Hz/3Ph(Customized)
	Line speed	0-60m/min
	Capacity	450 KW
	Whole line Dimension	45m(L)X10m(W)

	Line direction	From right to left(Face to machine)

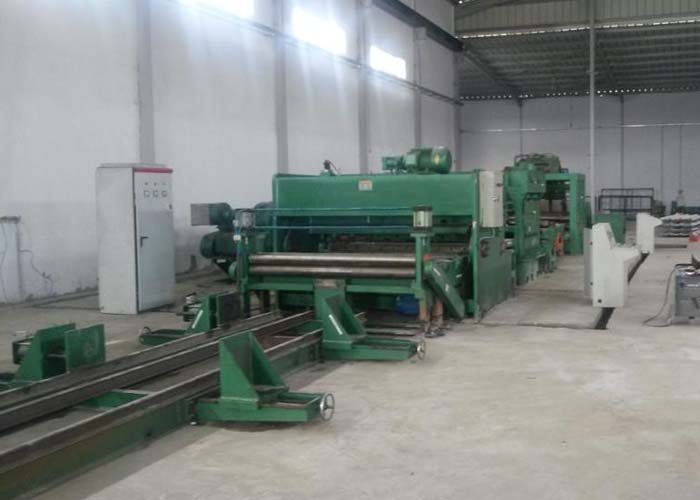

producing process:

Heavy Gauge Foil Metal Slitting Line PLC Automatic Control Color Customized
