    Aluminium Foil Steel Coil Slitting Machine PLC Control Pipe Making Support

    Ask Lasest Price
    Brand Name : YBT
    Model Number : YB952608
    Certification : CE ISO SGS
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 2set
    Delivery Time : 60-90 days
    • Product Details
    • Company Profile

    Aluminium Foil Steel Coil Slitting Machine PLC Control Pipe Making Support

    Aluminium Foil Coil Sheet Steel Slitting Machine and Metal Slitting Line


    Product Introduction

    In metal slitting, straight lines are cut length wise into the large coil to create strips of metal that are narrower in width.Steel slitting line is widely used for pipe making, automobile parts, metal case, metal punching and package steel strips industries. Our automatic steel slitting line has been exported to Middle East,South America and Europe,sound quality and after sale service also win reputation from our customers.To cooperate with you is our biggest honor.


    Items
    Main specification
    Material
    plain carbon steel, stainless steel
    Thickness
    0.1~10mm
    Width
    500~3000mm
    Inner diameter
    508mm, 610mm, 760mm
    Max outer diameter
    1800mm
    Max weight
    15000Kg
    Slitting speed
    100~200m/min

    Slitting Machine Work Flow

    Material loading cart → Double loading uncoiling → Leading head, shoveling head, pitch roller feeding, end shearing machine → Deviation-correcting device → Slitting machine → Scrap institution → Loop → Pre-segregation, tension machine→ Coiler → Material unloading cart → Hydraulic control→ Electric control system

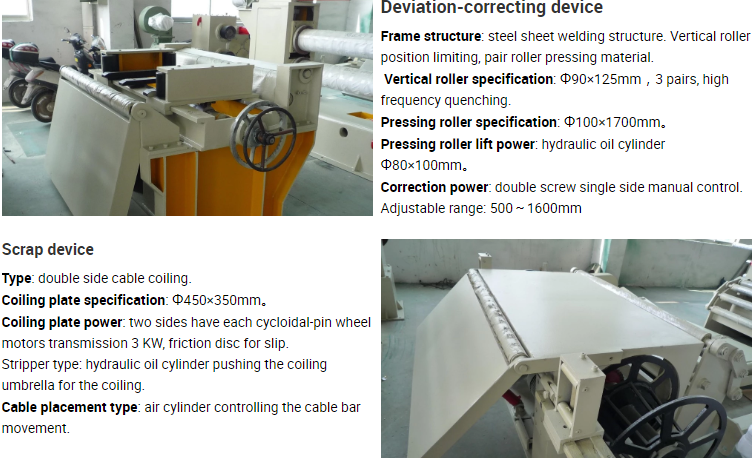

    Detailed Images


    FAQ

    Q: Are you manufacturer?
    A: Yes, we are manufacturers of steel slitting line,we have our own technical team, and about 80,000 sq.m

    workshop, welcome to visit us!

    Q: What payment terms do you accept?
    A: We are flexible on payment terms,we can also help you on financing,please contact us for details!

    Q: What information will you need to make the proposal?
    A: Coil weight,coil width,coil thickness,minimum strip width,maximum slitting quantity and your special requirements.

    Q: What should I do to start a new business?
    A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.

    Q: Do you provide training and maintenance?
    A: Yes. In order to your more efficiency for production, when the steel slitting line has arrived at the importer’ s port.
    Our company will send engineers to installing the steel slitting line and responsible for training the worker of customer until they can operating the machine skillfully.
    During the warranty time, if the device can 't work normally, after receiving your notice, within 24 hours, we will send
    engineers to your factory for processing; If it is artificial damage,then need to charge a cost.
    Each machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.

    Q: Why choose you?What is the difference between you and other Chinese supplier?
    A: We have specialized in this area for over 20 years.Our metal slitting lines are exported to many countries in the world.You can get higher quality product & better professional service from YBT with same price.
