Parameters
| Description | Technical Parameters |
Raw Material Parameters | Raw material | Carbon steel |
| Thickness | 1 - 4mm |
| Width | Max.1250mm |
| Coil OD | ≤Φ1600mm |
| Coil ID | Φ480mm~Φ520mm(Customerized) |
| Coil Weight(Max) | 10T |
Finished Product Parameters | Slitting blade shaft | Φ200 |
| Blade specification | Φ340×Φ200×10 |
| Material of blade | 6CrW2Si |
| Material of leveling roller | Gcr15 |
| Diagonal tolerance | ≤±2mm(L=2000mm) |
| Length tolerance | ≤±1mm/2000mm |
| Line speed | ≤30m/min |
| Power of slitter | 45KW |
| Power of recoiler | 55KW |
| Voltage | 380V,50HZ,3Phase or customerized
|
Descriptions:

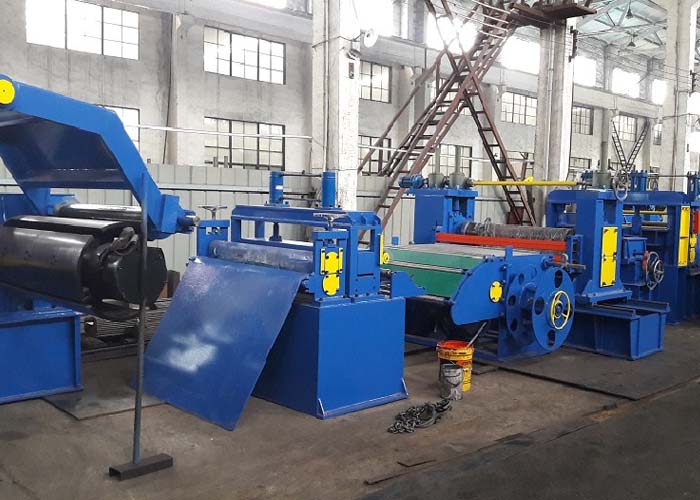

Components of the 1250mm semiautomatic slitting line: coil car,
hydraulic decoiler, slitter, hydraulic tension station, hydraulic
recoiler
Composed device:
1. Decoiler
The motor will drive it running and help the decoiler to feed the
material to the next device
It can expand and shrink to meet the different coil Inner
diameter's requirement.
It is one of the important part of the slitting line
Capacity: 5T
2. Slitter
At the entry part, it is equipped with the side guide device to
prevent the sheets not directly go into the slitter
Steel slitting line' s slitter part designed with the bracket
movable structure to make it easy to adjust the slit width
It should be equipped with the blades, shim , bakelite plates or
the rubber band to make the slitting possible
3. Scrap winder
In the slitting line it is designed to receive the waste materials
on both sides
And a shaft with the 5.5 KW motor to wind the material with speed
adjustment
4. Tension stand
Two shafts will be equipped with spacers to divid the strips one by
one
The press device with felted woolen will create the first tension
part to ensure the tight and even recoiling quality
The press part is adjustable as per the various thickness
requirements
5. Recoiler
The press arm will divide the strips one by one and create the
tension with the tension stand
The motor makes the speed adjustable
Recoiler is the most importmant part of the whole steel slitting
line.
Layout of the whole line
Decoiler----Pit 1------Slitter-----Scrap WInder------Pit
2------Tension stand------Recoiler
