C Shape Steel Structure Purlin Roll Forming Machine For Building
YBT C Shape purlin roll forming machine includes in: decoiler ,
leveling equipment, roll forming system, punching equipment
,cutting equipment, hydraulic station, electric controlling system
and supporter for purlin.
We can also customize the machine according to your requirement.
Techincal Parameter
| No | Item | Parameter | Remark |
| 1 | Suitable
Material | Type | Galvanized Steel | |
| Thickness(mm) | 1.5-3.0 | According to customer's requirement |
| Yield Strength(Mpa) | 230-300 | |
| 2 | Forming Speed(m/min) | 20 | not including the punching and cutting |
| 3 | Material of Punching Die | CR12 | with quench treatment |
| 4 | Cutting Mode | hydraulic cutting | According to customer's requirement |
| 5 | Power source | Type | 380V/3PH/50HZ | According to customer's requirement |
Components of the machine
| No | Name | Quantity | Remarks |
| 1 | Decoiler | | 1set | Up to customer |
| 2 | Main Machine | Leveling Device | 1set | |
| Punching Device | 1set | |
| Pre-cutting Device | 1set | Up to customer |
| Roll Forming | 1set | |
| Hydraulic System | 1set | |
| 3 | Electric Control System | 1set | |
| 4 | Supporter | 2pcs | Up to customer |

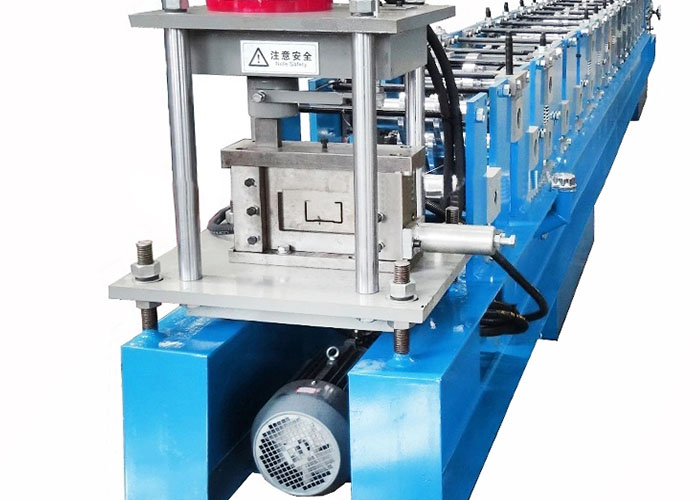

No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:5.5KW, Hydraulic pressure range: 0-12Mpa
Differents shapes of C and Z ,Welcome to send us your new design
Certification and after service
1 . Match the technology standard, ISO producing certification
2 . CE certification
3 . 12 months warranty since the delivery. Board.
FAQ
Q: What's the payment terms of your machine?
A: Normally its 30% T/T in advance and 70% by T/T
Q: How can inspect the machine if I can't go to China?
A: We will send you machine testing video and also product sample
if required.
Q: Do you provide installation and commissioning?
A: Sure, we have experienced and professional installation team
which available for wordwide areas.
Q: What's the delivery time of your CZ purlin machine?
A: 65-90 days
Q: Did you test you machine before delivery?
A: Yes, all our machines will test 24 hours before leave factory.
Packaging & Shipping
(1) . Main body of Shutter Door Roll Forming Machine is naked and covered
by plastic film(to protect of dust and corrosion),loaded into
container and steadily fixed in 1x40GP container with steel rope
and lock catch suitable for long-distance transportation,
(2) .spare parts are covered by plastic film.
(3) . With even lifting point in the machine for easy container loading
and uploading.
