Galvanized Steel Crash Barrier Guardrail Speedway Roll Forming
Machine
Application :The finished products are widely used on highway,
expressway and other public places to prevent different kinds of
accidents and improve safety. They can also be used as fence for
livestock farms and other places.
Speedway Guard Rail Roll Forming Machine is used to produce guard rails or crash barriers. Hot rolled,
galvanized or other steel sheet and coil is suitable roll forming
materials for this machine. This machine is mainly made up of
loading coil car, exit looping kit, roll former with tooling,
automatic stacking device, flying cut-off machine, servo roll
feeder, leveler, loading coil car, etc.
Components for the Machine:
| 5T hydraulic | Coil placement in the coil holder: hydraulic hoist;
Pulling of steel from the coil to the pulling mechanism for the
start: manual;
Suitable of the pulling mechanism for all required thicknesses:
included;
Device preventing unwinding of the coil from the coil holder:
included;
Uncoiled metal compensator: included, assures even feeding at all
production speeds;
Working speed: 0-15m/min adjustable
Main motor power: 5.5KW AC motor
Hydraulic power: 4kw |
Flattener | The quantity of leveler rolls must be planned according to
thickness 2.0mm to 3.0 mm. Flattener roller: upper is 3 rollers, down is 4 stations(total is 7
rollers) Flattener roller material: SAE 1045 thermal treatment hardness
48-52 HRC. Diameter of flattener shaft: diameter70mm, material is SAE 1045,
hardening and tempering |
| Forming section |
Shaft diameter: diameter110 mm material: SAE1045 with quenching and
tempering
Roller material:ASTM1045 chrome plated surface with chrome
Forming station: about 16 stations (according the final design)
Machine roll forming speed: 0m-15m/min(without punching)
Machine Voltage, Frequency: Japan Yaskawa(380 V, 50 Hz, 3Phase) |

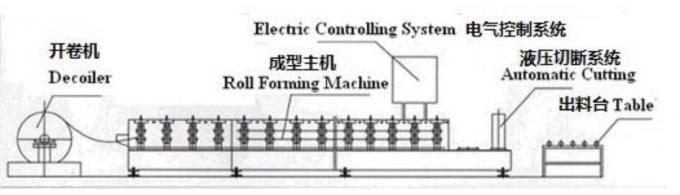

Process of Rolling form machine
Uncoiling →Infeed guiding →Roll forming →Pressing→Measure Length&Shearing →Sheet to
Support Table
Our service
1 . Free technical support and free accessories supply.
2 . Engineer available to service machinery overseas.
3 . One year warranty is provided.
4 . Long life technical guidance for free.
5 . We always offer technical support, quick response, all your
inquire will be replied in 24 hours.
Our Machine Advantage
Easy operation:All machine cotrolling by PLC computer controlling systerm.
Good quality: We have a professional designer and experienced engineer team.And
the raw material and accessories we use are good.
Good service: we provide the technical support for whole life of our machines.
Guarantee period: within one year since the date of finishing commissioning. The
guarantee covers all the electric, mechanic and hydraulic parts in
the line except for the easy-worn parts.
Reasonable price:We offer the best price in our industry.
