Automatic Change Size CZ Purlin Roll Forming Machine With 15 Groups
Main Rollers
1. Main features of quick change CZ purlin roll forming machine
The advantages of CZ purlin machine AUTOMATIC size-change type are
as follows:
1. Produce different purlin size without changing rollers or
spacers.
2. No need changing cutter for different size.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range),help to save
material
5. Optional Punch hole at any position of purlin web side and
flange side
2. Detailed Images of cz shaped steel forming machine
Machine Parts
1) CZ purlin machine punching system
Brand:YBT Original: China
with 3 cylinder(one cyinder for single hole and 2 cylinders for
dual-holes.
2) CZ purlin machine rollers
Brand: YBT Original: China
Rollers manufactured from high quality bearing steel GCr15, CNC
lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel
by welding

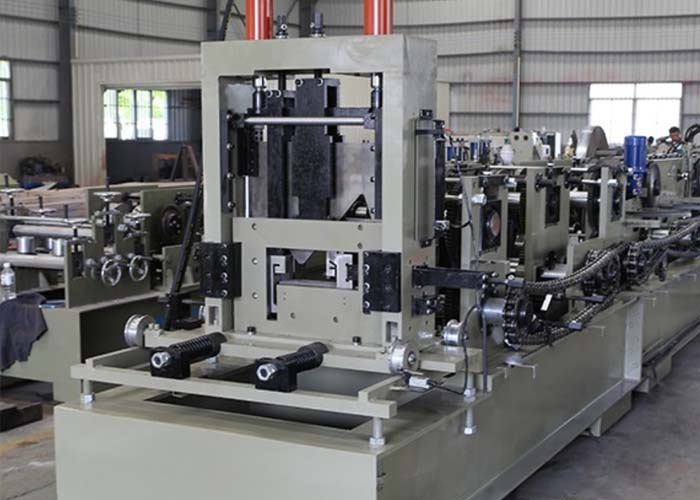

3) CZ purlin machine post cutter
Brand: YBT Original: China
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
4) CZ purlin machine locating pin
Brand: YBT Original: China
C-to-Z purlin changing can finish within 5-10 minutes
5) CZ purlin machine decoiler
Brand: YBT Original: China
ManualDecoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and
stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
6) CZ purlin exit rack
Brand: YBT Original: China
Un-powered,one unit
Suitable for material with thickness 1.5-3.0mm
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision
machined,Motor Driving
Gear chain transmission, 16 rollers to form and 4 rollers for
straightening and levelling
Main motor=18.5KW , Frequency speed control. Forming speed approx.18m/min
PLC Control System (Touch screenbrand:German Schneider
Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Just adjust required WEB,HEIGHT and LIP by hand wheel with the help
of
position clock(with digit display for easy operation) on it,
and then input the required production data on the touch screen.
It takes only 5-10 minutes to finish all. No need to change rollers
or spacers or cutters
like traditional old style machine (which takes over 45 minutes for
each production size changing).
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manual in English
| No. | Technical Parameters - C/Z Purlin Roll Forming Machine |
| 1. | Raw Material | Carbon Steel, Galvanized Steel, 235Mpa to 345Mpa |
| 2. | Material Thickness | 2.0-3.0mm |
| 3. | Material Width | 200mm to 700mm depend on specific profile |
| 4. | Diameter of Shaft | 76mm |
| 5. | Material of Shaft | 40Cr with chrome plated |
| 6. | Material of Rolls | GCr15 with 0.05mm thick Chrome plated |
| 7. | Main Power For Roll Forming | 22KW |
| 8. | Forming Speed | 15-20m/min |
| 9. | Forming Stations / Roller Stations | 16 stations |
| 10. | Cutting Type | Hydraulically powered cutting |
| 11. | Cutting Blade | Cr12 Mov HRC 58-62 |
