    Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes

    Ask Lasest Price
    Brand Name : YBT
    Model Number : YT376509
    Certification : CE ISO SGS
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10set
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes

    80-300 CZ Purlin Roll Forming Machine Fully Automatic Changing Sizes
    This CZ purlin production line can produce c purlins and z purlins with web widths from 80mm to 300mm, flange sizes from 35-80mm and lip sizes from 15-20mm. Whole line is mainly composed of 3ton or 5ton decoiler, levelling unit, feeding guide, roll forming unit, post-punching unit(punching holes after roll forming, more precisely), infinitely adjustable cutting device, electric control system and hydraulic system, etc.

    Processing flow of machine:

    Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Exit table


    No.Mchine compositionQuantity
    1 .Hydraulic decoiler 3T1 set
    2 .Cold rolling mills1 set
    3 .Hydraulic cutting device1 set
    4 .PLC computer1 set
    5 .Electric cabinet1 set
    6 .Exit table1 set

    Technical Parameters:

    Suitable material


    Steel

    Thickness of the plate


    1.5-3.0mm

    Input width of the plate


    80-300mm

    Width of the plate after forming


    80-300mm

    Productivity


    0-25m/min


    Roller steps


    14 rows

    Roller material


    45#steel Rolling chromium

    Diameter of active shaft


    90-120mm

    Wall thickness of the mainforming machine


    20mm steel plate

    Main forming machine body


    350mmH steel

    Transmission chain


    2 inches

    Cutting hydraulic system


    CDF-10 gear pump

    Motor power


    5.5kw

    Dimensions of major structure


    8500mm*1600mm*1200mm

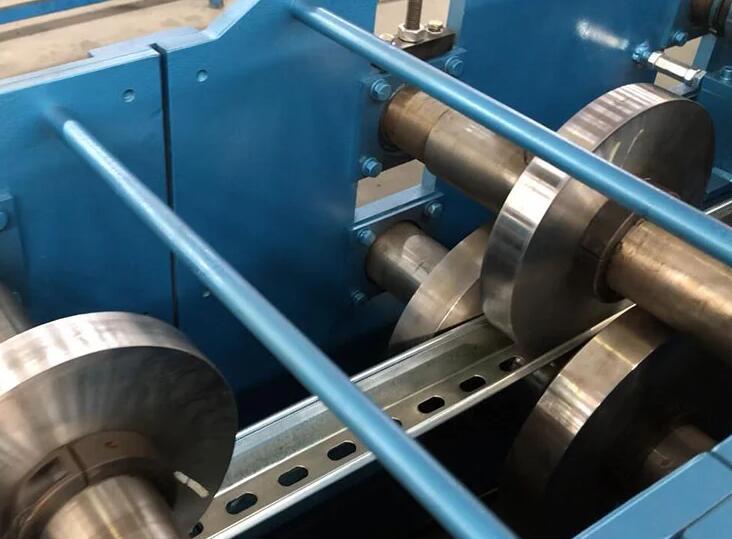

    Detailed machine parts:
    We can produce two types of C purlin products by the same forming machine, and feeding width are 80-300mm, saving a lot of space and increase the machine efficiency.
    For cutting system, we use CDF-10 gear pump, Cr12 for cutting blade. #45 material for forming rollers. The double-blade design is integrated, which is convenient to operate and does not take up any space. We can custormize our machine according to customer's requirement.

    Our services:

    1. Free technical support and free accessories supply.


    2. Engineer available to service machinery overseas.


    3. One year warranty is provided.


    4. Long life technical guidance for free.


    5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
