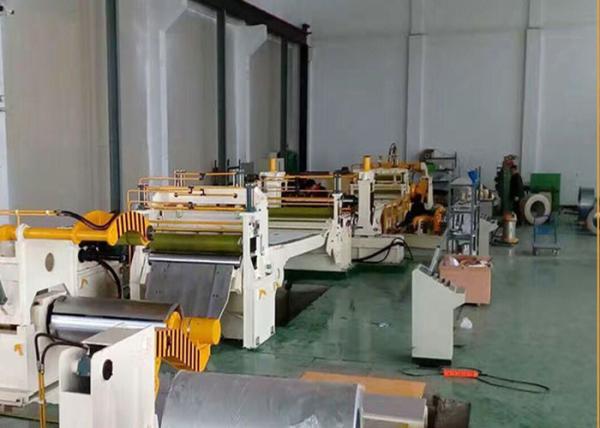

Automatic Stainless Steel Coil Thickness 0.2-2.0mm Slitting Line
Machine
Slitting Line Machine is used for the metal plate decoiling,
slitting and winding into several volumes needed width coil plate.
It can be widely used in cold or hot rolling carbon steel,
tinplate, stainless steel and all the other kinds of metal
materials.
Input coil parameter
| 1. | Material | : | CR,color steel,PPGI |
| 2. | Thickness | : | 0.3~2.0mm |
| 3. | Width | : | 800~1600mm |
| 4. | Mechanical character | : | Tensile strength σb≤450MP σs≤260MP |
| 5. | Coil ID | : | Ø508mm-Ø610mm(padded) |
| 6. | Coil OD | : | Ø800mm ~ Ø2000mm |
| 7. | Weight | : | 10t |
Finished product parameter:
1 . Coil ID : 610mm,508mm,510mm
2 . Coil MAX:10t
3 . Width accuracy: Width>300mm, 0.5~1.5mm ±0.05mm
1.6~3.0mm ±0.10mm
4 . Straightness (bending) Width>300mm, ≤0.35mm/1000mm
(If the two side strips are within 100mm of the mother material,
considering as the common production process)
5 . Burr :Thickness ≤1.0mm,burr≤0.03mm (Sharp blade, reasonable
gap)
Thickness >1.0mm,burr ≤3% of material(Sharp blade, reasonable
gap)
6 . Scrape width range :2~25mm(Not less than 1.5 times the
thickness)
Machine parameters:
| 1. | Guiding speed | : | 0~10m/min(adjustable) |
| 2. | Line speed | : | 0~150m/min(adjustable) |
| 3. | Slitting way | : | Drive shear |
| 4. | Recoiling way | : | Roll-up style |
| 5. | Operation height | : | +1000mm |
| 6. | Machine size | | 28m X 10m |
| 7. | Running direction | : | The operator operates on the side of line, running from left to
right |
Simple working chart
Hydraulic entry coil car,Hydraulic decoiler,Leveling
machine,Loop,Side guide device,Servo precision straightening
machine,Cutter,Transportation table,Hydraulic lifting
table,Pneumatic stacker device,Exit coil car,Pneumatic
system,Hydraulic system,Electrical system
Component
Other instructions:
1 . the gas source of the whole set of equipment is equipped with
the user.
2 . installation and commissioning is completed, the two sides need
to handle the handover procedures, not for the acceptance of the
handover procedures and put into use, that is, the two sides agreed
to accept qualified.
3 . Production line equipment spray paint dry paint. If users have
special requirements for the equipment to provide the color tone,
or writing.
4 . Foundation construction, installation and debugging of embedded
parts and the consumption of water, oil, gas and electricity by the
user responsible
5 . other matters of negotiation.
