The machine enjoys high reputation all over the world . the products are widly used for house building, such as roof and wall. The machine can process Galvanized Sheet(Gi),Cold Roll Steel(CRC),Hot Roll for feeding material.

The feeding material range is from 0.3-0.8mm. We can custormize profile of panel which is convenient for customers.

Techical parameter:

The advantages of roof panel machine are as follows:

1 . Low cost, light weight but high strength, short building period, and re-cycle use

2 . Save material ,no waste.

3 . Easy operation, low maintenance cost

4 . Able to deal with stainless material

Detailed Images

1) YX35-820 roof panel machine pre-cutter

With feeding material guide.

2) YYX35-273-820 Roof Panel Roll Forming Machine rollers

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

Body framemade from 350# H type steel by welding

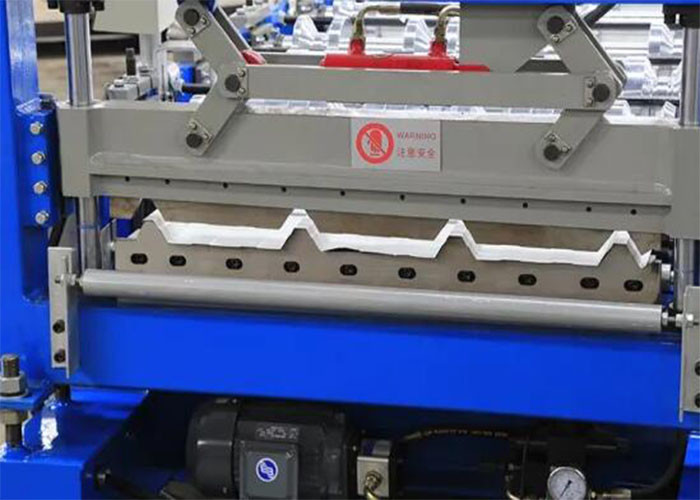

3) YX35-273-820 Roof Panel Roll Forming Machine post cutter

Made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 20mm steel plate by welding

Hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

4) YX35-820 roof panel machine touch screen

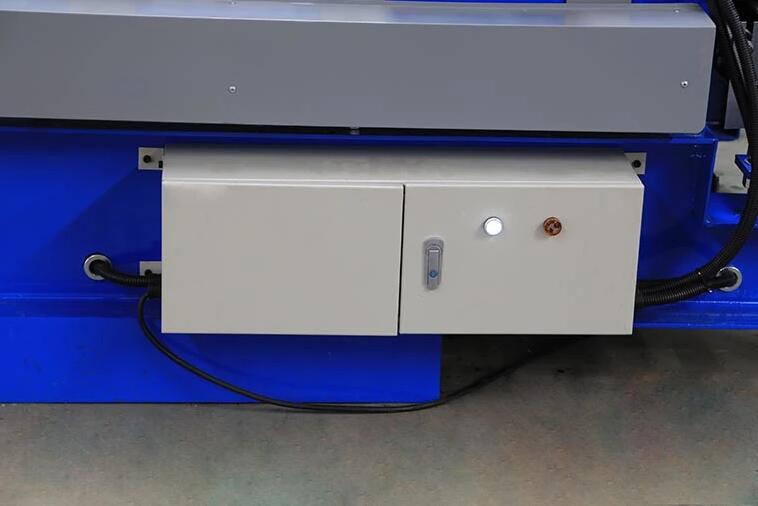

5) YX35-820 roof panel machine control cabinet

6) YX35-820 roof panel machine decoiler

7) ManualDecoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop

Max. feeding width: 1200mm, coil ID range 508mm±30mm

Capacity: 5-9 Ton

Decoiler: Manual/Hydraulic for Options

8) YX35-273-820 Roof Panel Roll Forming Machine exit rack

Un-powered,three units

Other detailes of YX35-820 roof panel roll forming machine

Suitable for material with thickness 0.3-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 14 steps to form.

Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min

Packaging & Shipping

(1) Main body of Roll Forming Machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container with steel rope and lock catch suitable for long-distance transportation.

(2) Spare parts are covered by plastic film.

(3) With even lifting point in the machine for easy container loading and uploading.
