0.8 - 1.2mm PLC controled Door Frame Roll Forming Machine 8 - 12m /
min
The machine is used for steel door frame making, products can be
used for building decoration and housing.The machine works stably
and no noise.In addition, it's easy to control and operate. It uses
PLC control system to get the best efficiency.And the steel door
frame forming machine does not take up any space because it is
designed to all in one machine.
Technical parameters:
| Raw material | PPGI/color steel |
| Thickness of material | 0.8-1.2mm |
| Forming speed | 8-12m/min |
| Total power | 7.5kw |
| Voltage | 220V 60Hz 3phase |
| Diemension | 7000*1400*1600mm |
| Diameter of the axle | 70mm |
| machine weight | 5 tons |
| Control system | PLC and hydraulic |
| Working stages | 15 stages |
| Side board | 16mm |

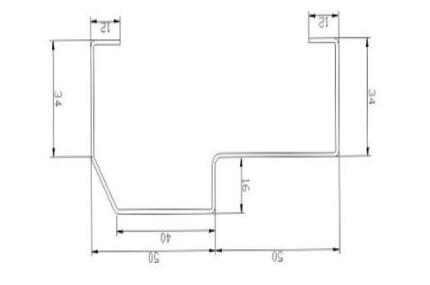

Profile drawing:
Related descrption:
The steel door frame roll forming machine weights 5 tons
Machine size is 7000*1400*1600mm
The color is grey/blue or as customer requires.
Material Thickness:0.8-1.2mm .Applicable material:Galvanized Steel
Coils,Cold Rolled Coils
Rollers manufactured from Cr12, precision machined, hard Chrome
Coated
Motor Driving,Gear chain transmission, 15 forming stations
Cutting system is hydraulic controled.
For decoiler, according to customer's requirements of manual or
hudraulic.
So the same for the whole machine,we can design full automatic
control system
PLC Control System:
(Touch screen brand:Taiwan WEINVIEW, Inverter brand:Finland
VOCAN/Denmark
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±1mm
Control Voltage 24V
Q&A:
1 . Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to
produce.
2 . Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians
available to maintain the machine overseas to customers’ workshop
if needed.
3 . You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4 . How long the machine could be made?
Normally speaking, high precision roll forming machine could be
made out with 40 working days.If you need machines in hurry, we can
make it for you less than a month.
5 . Do you provide customized?
Sure, we can design the machine according to the requirement and
profile drawing you provide. Our engineers can offer the best
professional solution to our worldwide clients.
6 . May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7 . How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station),
half an hour.
8 . What's the warranty period?
12 months warranty period, starting from the date of the successful
installation and commissioning of the equipments at the buyer’s
Installation site.
9 . Can you arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide
door-to-door service.
