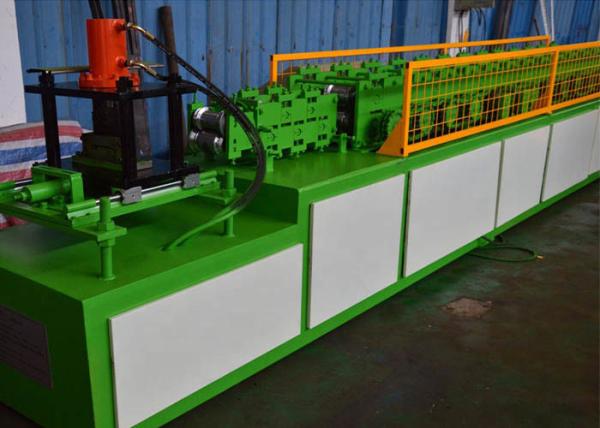

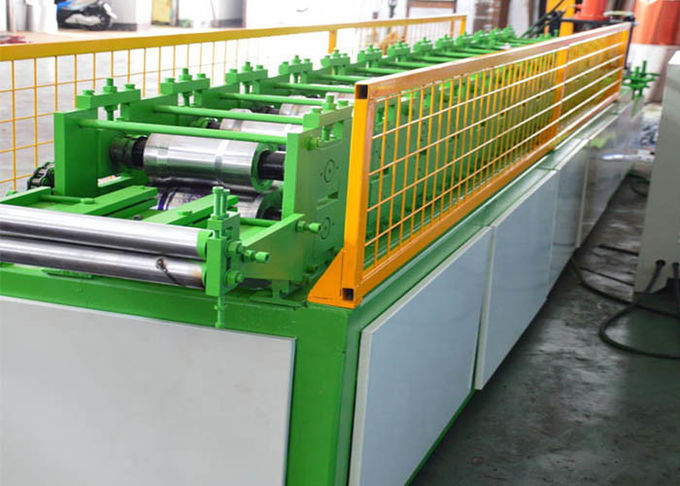

0.7 - 1.2 mm roller shutter door making PLC control cold bending machine

Description:
Our shutter door forming machine has many advantages of stablity, efficiency, material saving, low noise. And our machines work within high speed which improves its productivity greatly. Besides, Its products have high quality and fashionable styles. It is widely used in stores, warehouses, buildings, welcomed by customers throughout the world. The machines can be designed to produce different shapes and sizes according to customer's requirements.

Main teachnical parameters:
1 .Thickness of sheet: 0.7-1.2mm

2 .Max Coil Width: 500mm
3 .Size:4000*1350*1000mm

4 .Motor Power: 7.5 kw forming system
5 .Roller material: C45 steel
6 .Base Frame: 300 H steel welded
7 .Roller Stations About 13 stations forming
8 .Roller Material 45# Steel with quenching
9 .Shaft Material 45# Steel Diameter 60mm shaft

10 .Cutting way: Stop to cut.

11 .Oil pump statio:1set.

12 .Hydraulic power: 4 kw hydraulic system.

13 .Blade Material: CR12Mov with heat treatment HRC58-62.

14 .Tolerance: +-1.5mm

15 .Coil inner Diameter: 460mm~520mm

16 .Max out diameter of the coil: 800mm

Profile drawings:
Welcome to send us your drawing.


Working flow:
Decoiler-Level device-Main forming machine-Hydraulic cutting-Run out table

Machine Parts:

Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.

Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese

Power supplier: 380V, 50 Hz, Three Phase (adjusted with the requestment)

Main Features:

1 .This machine is made up of roll forming machine,manual decoiler,cutting machine,PLC computer control and hydraulic system,out put tables.

2 .The machine is stable,no noise,no shake.

3 .It is one unit, the control box and the hydraulic station for the cutting are all put under the machine frame to save space.
4 .The touch screen is hang over, it is not under the floor.
5 .When you get the machine,it is no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working.

The steel roll shutter door are popular and used for factory, warehouses, stores. Feel free to contact us.

After-sale service:
1 . Installation and training of roof forming machine:
a .If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b .Without visiting, we will send you user manual and video to teach you to install and operate.

c .If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2 . After Service of roof forming machine:
a .One year guarantee for whole roof forming machine.
b .24 hours technical support by email or calling
c .If there is any problem found of the roof forming machine, we will repair it for free in one year.
