15-20m / min speed steel door frame roll forming machine with PLC
control
Description:
Our shutter door forming machine has many advantages of stablity,
efficiency, material saving, low noise. And our machines work
within high speed which improves its productivity greatly. Besides,
Its products have high quality and fashionable styles. It is widely
used in stores, warehouses, buildings, welcomed by customers
throughout the world. The machines can be designed to produce
different shapes and sizes according to customer's requirements..
Steel roller shutter door slats made from hot/cold rolled steel
strips,and hole punched,roll formed,and cut to length by the Slats
Steel Roller Shutter Door Roll Forming Machine / Shutter Door
Machine
Slats Steel Roller Shutter Door Roll Forming Machine / Shutter Door
Machine has much similar function as a steel rolling shutter door
slat roll forming machine, and both roll forming machines have been
designed for producing roller shutter doors.
But, the specific products made by the two type roll forming
machines are different: one is Roller Shutter Door Panels and the
other is Roller Shutter Door Slats.
the construction details for two types of roller shutter doors are
different, too: one type of roller shutter consists of many
horizontal rolling shutter slats, and the other is combined with
three or four pieces of roller shutter door panels only (depends on
the specific height of doors).
The raw materials for two types of roll forming machines are
different also : rolling shutter door slats are made from
galvanized steel, prepainted steel or alloy aluminum steel strips,
while roller shutter door panels are made out of pre-painted steel.

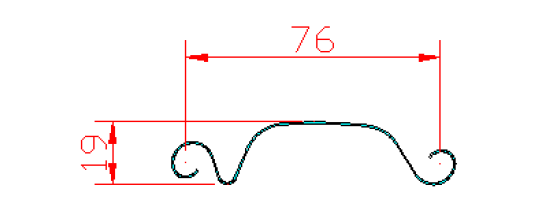

Design drawing and sample
See below design, Slats Steel Roller Shutter Door Roll Forming
Machine / Shutter Door Machine design
Production process
Decolier----> Punching----> Feeding guide----> Roll
forming machine----> hydraulic following cutting---->
Finished products on run out worktable
Technical Prameter
| 1.5Tons Manual Deocoiler | Coil Inner-diameter=510±30mm. Coil Outer-diameter Max. 1300mm； |
| Taper wedge expanding system |
| Load Capacity: Max. 1.5 Tons; Coil Width Max. 1250mm； |
| Slats Steel Roller Shutter Door Roll Forming Machine | Gear/Sprocket driving; 14 stations roll forming |
| Rollers manufactured from 45# steel, CNC lathes, hard Chrome
Coated, fine polished. |
| Shafts Diameter=ф65mm, Precision Machined, fine Polished |
| Main motor =4KW, Frequency speed control |
| Max Line speed of roll Former: Approx. 10-15m/min |
| Hydraulic Cutting Device | Stop to cut, Post cut |
| Cutting tool material: Cr12, Heat treatment |
| Hydraulic unit, Pump motor =3KW |
| PLC Control System | Control the quantity & cutting length automatically |
| Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron),
etc |
| Cut-to-length tolerance≤±2mm |
| 24V Control voltage |
| Controller with forward/backward/emergency stop buttons |
| Product Rack | Un-powered, 3 units |
Machine components
| De-coiler | 1 Set |
| Feeding and Guiding Device | 1 Set |
| Roll Forming Machine | 1 Set |
| Punching device | 1 Set |
| Hydraulic Cutting Device | 1 Set |
| PLC Control Box | 1 Set |
| Output table | 1 Set |
After Service
1. The warranty of the Steel Roller Shutter Door Roll Forming
Machine / Shutter Door Machine is one year after the client
receives the machine. Within the one year, we will send the
replacement parts to the client free of charge.
2. We offer technical support service in whole life of our
machines.
3. We can send our technicians to install and train the workers in
the clients' factories.
