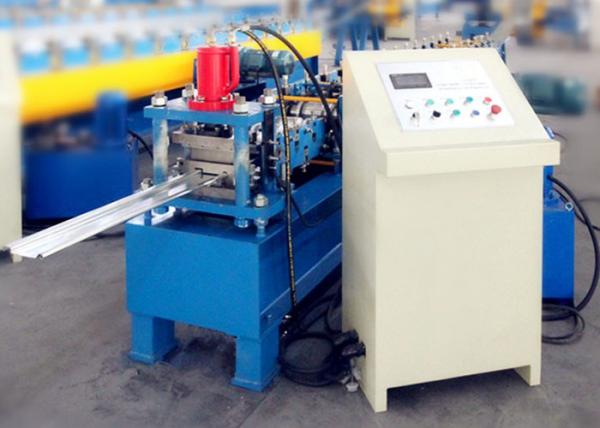

Automatic 0.8 - 1.2 mm roller shutter door forming machine 33 forming stations

Description:
Our shutter door forming machine has many advantages of stablity, efficiency, material saving, low noise. And our machines work within high speed which improves its productivity greatly. Besides, Its products have high quality and fashionable styles. The steel roll shutter door are popular and used for factory, warehouses, stores and are welcomed by customers throughout the world. The machines can be designed to produce different shapes and sizes according to customer's requirements.

Main teachnical parameters:

Working flow:
Decoiler-Level device-Main forming machine-Hydraulic cutting-Run out table

Machine Parts:

Profiles drawings:

Welcome to send us your specific design.

Raw material:Galvanized steel /Aluzinc steel

Thickness:0.8-1.2mm

Feeding width:1250mm

Cover Width:915mm

Main motor power:18.5kw

Hydraulic power:5.5kw

Yield stress:235Mpa(33KSI)-350Mpa(50KSI)

Voltage:380V,3Phase,50HZ/as customer require

Forming station:33 stations

Control system:PLC(imported Brand)

Cutting blade material:Cr12 High Grade Steel

Cutting tolerance:+/-2.5mm(length=5000mm)+/-3.0mm(5000mm<length<10000mm)

Manual decoiler:8T or as customer require

Coil inner diameter:508mm/610mm

Roller material:45#steel Chrome Plated,33 forming stations

Production Capacity:10-15m/min

After-sale service:
1 . Installation and training of roof forming machine:
a .If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b .Without visiting, we will send you user manual and video to teach you to install and operate.

c .If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2 . After Service of roof forming machine:
a .One year guarantee for whole roof forming machine.
b .24 hours technical support by email or calling
c .If there is any problem found of the roof forming machine, we will repair it for free in one year.

Wuxi YBT machinery Equipment co.,ltd established in 1998, specialize in cold roll forming machine and auto-producing line.To put customers'benefit on the first, we know our success comes from customers'success and support. We run this mind through the whole process from the design and develpment to after-sale service in order to help our customer increase efficiency and reduce cost to strengthen competitive forces. Our designer and sales will listen to your reuirement to help you receive an ideal equipment.Our company has perfect internte for after-sale service which can support the after-sales so that you can get the satisfied equipment, ensure you receive our considerate service by solving all the problems which appeared during using the machine.
We will do the best machine to my all customers!

Our roll forming machine series:

1. Steel Silo Roll Forming Machine

2. Shutter Door Roll Forming Machine

3. C Z Purlin Roll Forming Machine

4. PU Sandwich Panel Line

5. Rock Wool Production Line

6. Highway Guardrail Roll Forming Machine

7. Floor Deck Roll Forming Machine

8. Cable Tray Roll Forming Machine

9. Steel Roll Forming Machine

10. Metal Slitting Line

11. Cut To Length Line Machine

12. Downpipe Roll Forming Machine

13. H Beam Welding Line

We will try do our best for make best quality machine!
