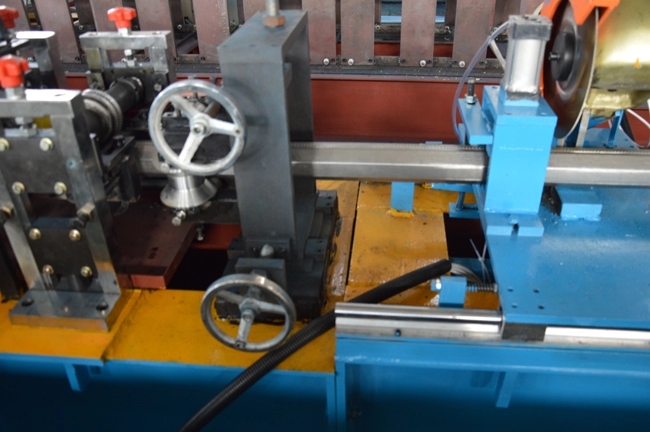

0.4 - 1.2 mm Stainless Steel Octagon Pipe Making Machine 20 forming
stations
The octagon tube forming machine is specialized equipment to
produce high frequency straight seam welded pipes for structural
pipe and industrial pipe . These ranges can be adjusted according
to customers’ need .Through optimization design, best materials
choice, and accurately fabrication and rolls, the whole line can be
reached high precision and high speed. Within suitable range of
pipe diameter and wall thickness, pipe production speed can be
adjusted. The pipes can be widely used for hotels, building
material shops, manufacturing plant, construction works.
Main machine patameters:
Machine specification: Forming thickness)0.4-1.2mm stainless steel
strength≤G250Mpa
Forming speed: 10-12m/min (EXCLUDING CUTTING STOP TIME)
Forming roller: about 20stations
Main motor power: 7.5KW
Roller material: 45# forged steel, surface coated with chrome
Main shaft material: 45# steel
Main axis dia.: 70mm
Hydraulic cutting pressure: 10-12Mpa
Cutting method: Electric powered saw cutting, cutting after roll
forming.
Cutting blade material: Cr12 quenching treatment
Electrical controlling system: Whole line adopted PLC control, cut
to length tolerance≤2mm
With Wig welding device,water cooling system
Main Components:
| Name | Quantity |
| 3T manual uncoiler | 1 set |
| feeding guiding | 1 set |
| Main roll forming machine | 1 set |
| Output table | 1 set |
| Main drive gear box | 1 set |
| Fly saw cutting | 1 set |
| Controlling system (including cabinet) | 1 set |
| Water cooling system | 1 set |
| Cassette | 2 sets |
Advantages of Octagon Pipe forming machine:
1 . Reasonable Price
2 . High Quality
3 . 12 Months Warranty
4 . More Than 10 Years Experience
5 . Durable
6 . Reliable
Processing flow of the octagon tube forming machine:
Uncoiling→ shearing →Accumulating→ Leveling→ Forming→ HF welding→
Deburring→ Cooling→ Sizing→ Straightening→ Cutting→ Discharging
It can produce welded pipes of different specifications (pipe
diameter, thickness, and length) according to the adjustment and
configuration of the machine. These models can be modified
according to the needs of customers to meet customers 'needs for
machine production.
Applications:
Be the series part of shutter door
Service Commitment & Quality Assurance:
Installation: If necessary, engineer is available to service
machinery overseas; but all the relevant cost and extra 100USD/day
for our engineer will be paid by the buyer.
Warranty: 1 year since the machine leave seller's factory.
During the warranty period, it covers all spare parts of machines,
if you find some spare parts were damaged, those new spare parts
will be supplied free by us, but normal wear and tear excepted. And
the freight should be bore equally by both parties.
