Roof Corrugated Sheet Roll Forming Machine Wall Panel roll forming Machine

Main Technical Specifications:

Name of Roll Forming Machine	Corrugated Roof Sheet Metal Sheet Rolling Machine Roll Forming Laminating Machine Price
Profile Drawing or Sample Picture
1	Suitable raw material	PPGI/PPGL/GI/GL Steel Coils
2	Thickness of coil sheet	0.3-0.6mm
3	Feeding Coil width	914mm
4	Effective width	760mm
5	Under frame	350H-beam
6	Diameter of Soild shaft	70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
7	Roller	High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm
8	Thickness of middle plate	Guide pillar memorial archway
9	Forming stations	23
10	Drive type	By chain(1.0 inch) link bearing
11	Power of main motor	5.5kw
12	Power of pump station	3kw
13	Forming speed	About 15-20m/min
14	Hydraulic cutting	Controlled by PLC
15	PLC	DELTA, TAIWAN
16	Material of cutting blade	Cr12Mov, quenching 58-62℃
17	Frequency converter	It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm).

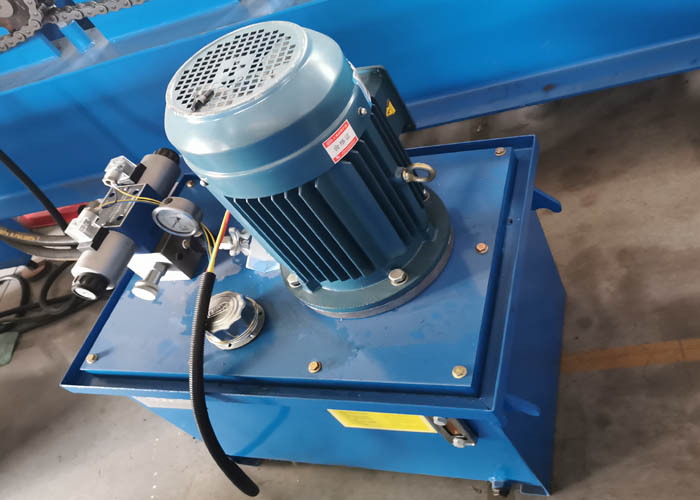

Name: Hydraulic Station

Packaging Details

1. We have professional technicians for loading.Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold.

Wuxi YBT machinery Equipment co.,ltd established in 1998, specialize in cold roll forming machine and auto-producing line.To put customers'benefit on the first, we know our success comes from customers'success and support. We run this mind through the whole process from the design and develpment to after-sale service in order to help our customer increase efficiency and reduce cost to strengthen competitive forces. Our designer and sales will listen to your reuirement to help you receive an ideal equipment.Our company has perfect internte for after-sale service which can support the after-sales so that you can get the satisfied equipment, ensure you receive our considerate service by solving all the problems which appeared during using the machine.
We will do the best machine to my all customers!
